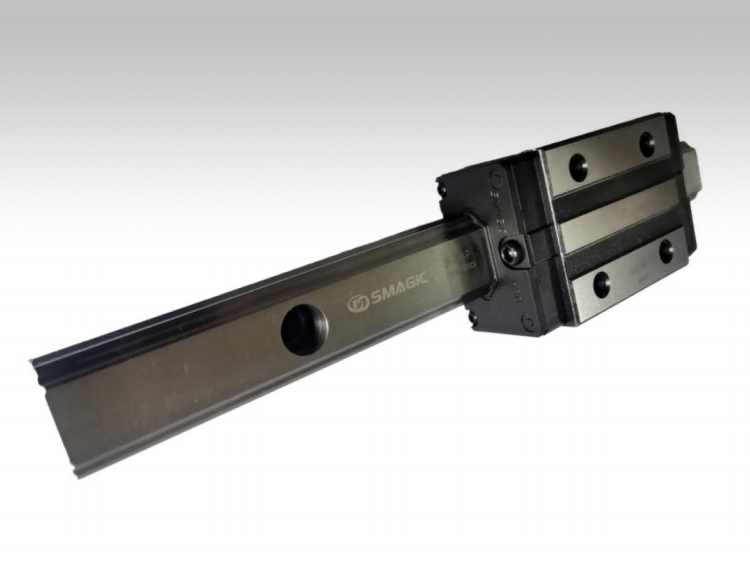

SH series linear slide rails,which are four-row single arc-arc contact linear slides,andintegrate the optimized structure design of the heavy-duty precision linear slide rails.Compared with other linear slide rails, the load and rigidity are improved.The loadcharacteristics such as direction and the function of self-aligning can absorb the assemblyerror of the mounting surface and obtain high precision requirements. The concept of highspeed, high load, high rigidity and high precision has become the trend of industrial productsdevelopment in the world in the future.SMAGIC four-rowsuper-load linear slides areproducts developed based on this concept.
SH Series Linear Slide Features
The DF (45°-45") combination from the circular groove can be absorbed by the inside ofthe line slider even if the mounting surface is slightly deviated during the installation bythe elastic deformation of the steel ball and the transfer of the contact point. The effect ofautomatic self-aligning ability is produced to obtain a smooth motion with high precision andstability.

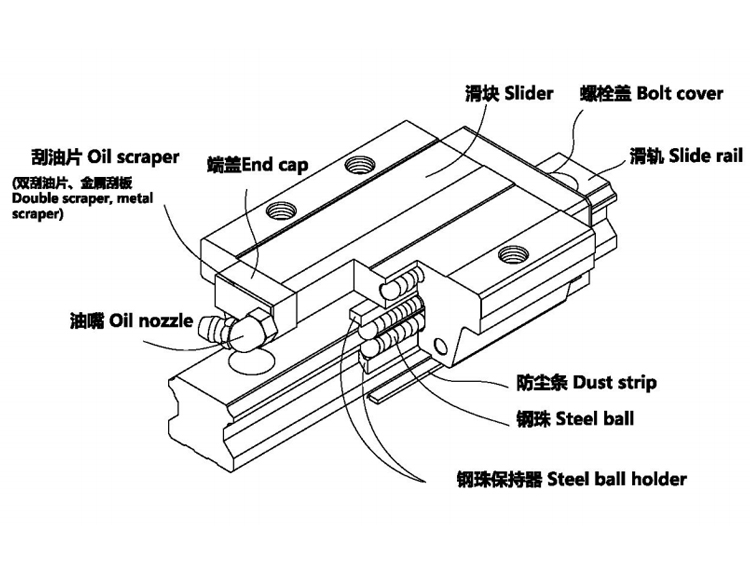

Due to the strict control of production precision, the linear slide size can be maintained withina certain level, and the slider has a retainer design to prevent the steel ball from falling off.Therefore, some series of precisions are interchangeable, and customers can order slips asneeded.Rails or sliders can also be used to store slide rails and sliders separately to reducestorage space.
The four-row circular groove is matched with the contact angle of 45 degrees such as fourrows of steel balls to make the steel ball reach the ideal two-point contact structure, and canwithstand the load from the up and down and left and right directions; if necessary, it canapply preload to improve rigidity.
