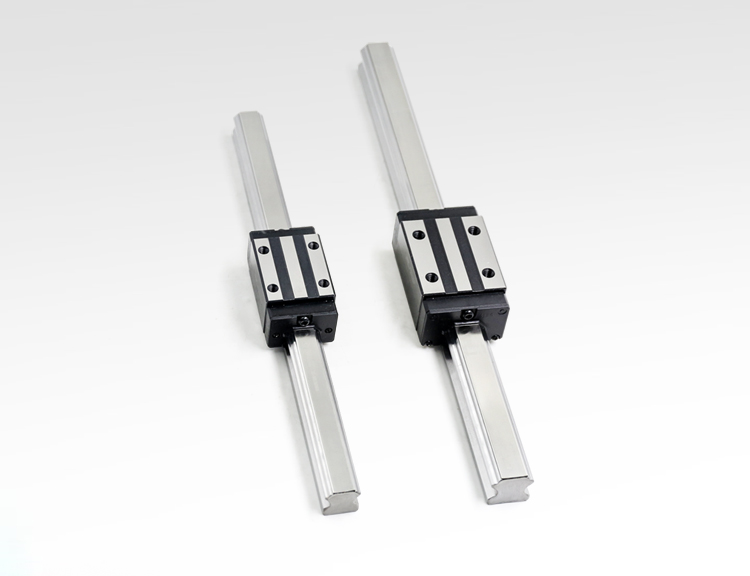

The SL series uses four rows of steel balls to withstand the load design, so that it has highrigidity and high load characteristics. It also has four-direction load characteristics and self-aligning function,which can absorb the assembly error of the mounting surface and obtainhigh precision requirements. In addition, the combination height is reduced and the lengthof the slider is shortened,which is very suitable for use in small equipment for high-speedautomation industry machinery and space requirements.
A steel ball retainer is provided on the slider to prevent the steel ball from falling off. Thisdesign not only facilitates the installation of the linear slide rail, but also does not cause thesteel ball to fall off when the slider is removed, and is interchangeable with precision.
Rolling circulation system: sliders, slide rails, end caps, steel balls, ball holders.
Lubrication system: nozzle, tubing connector
Dust-proof system: oil scraper, dust seal on the bottom, rail bolt cover, metal scraper
Product Specifications
The SL series is divided into two types of linear slides, which are non-interchangeableand interchangeable.The two specifications are the same.The main difference is that theinterchangeable sliders and slide rails can be used interchangeably, which is convenient,but The combination accuracy can not reach the accuracy of the noninterchangeable ultra-precision level,but since the combination accuracy of the SMAGIC interchangeable typehas reached a certain level, it is a kind of customer who does not need to pair the linearslide rails. Convenient choice.The product specifications of the linear slides mainly indicatethe linear slide size, type,accuracy grade，preload and other specifications, so that bothparties can confirm the product when ordering.
